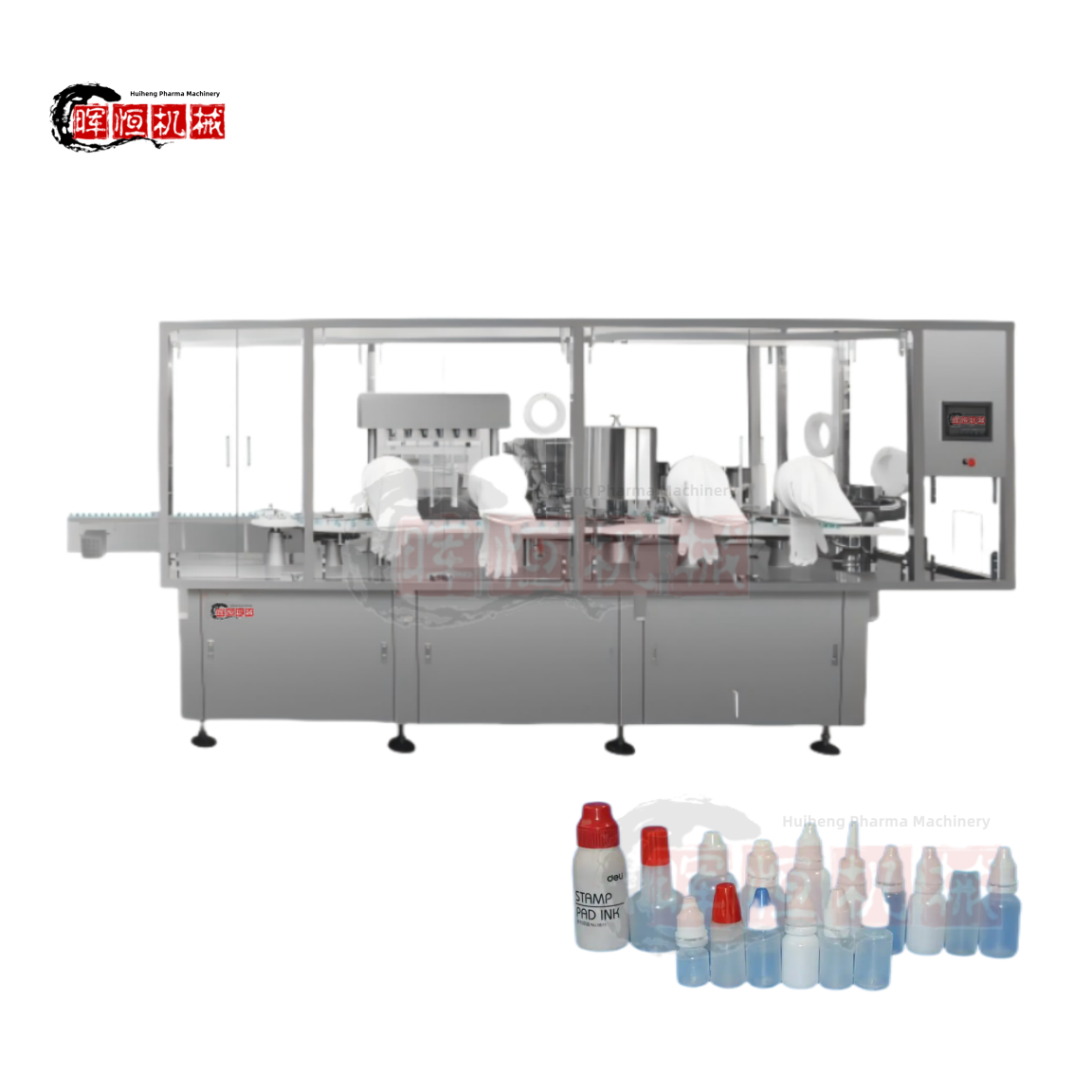

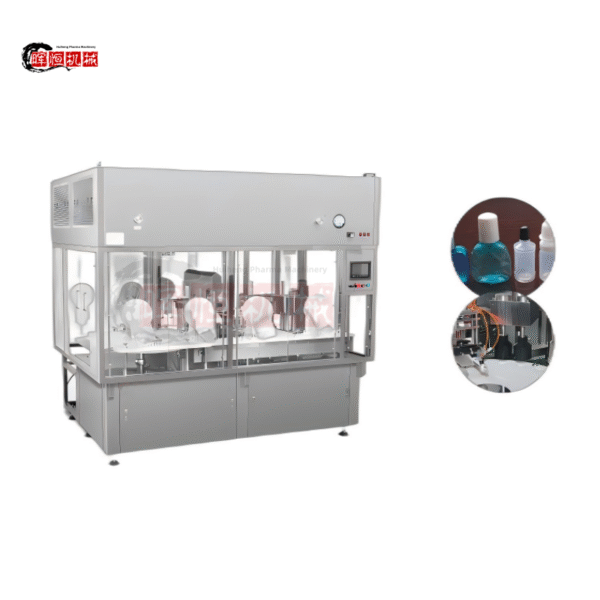

Aseptic Eye Drops Filling Capping Machine
Details:
- Touch screen operation platform, PLC control, variable frequency speed control.
- Intermittent bottle moving mechanism with stable and reliable running.
- No bottle no filling inner plug feeding by mechanical hand, no inner plug feeding in case of no bottle.
- No plug no cap, protection for plug shortage and cap shortage.
Description
Application
This machine is suitable for 5-30ML of various materials of round flat plastic or glass bottles of eye drops, electronic cigarette oil and other filling. The high precision CAM indexing mechanism provides the indexing plate to locate the upper plug and cover; Acceleration CAM drive provides lifting of screw head; Constant torque screw cap; Peristaltic pump metering filling; Touch screen control. No bottle, no filling, no insert, outer cover. With accurate positioning, smooth transmission, protective bottle cap, accurate measurement. Simple operation and other advantages. Cylinder plug gland, grip manipulator screw cap, metal parts in contact with liquid are 316L material, moving parts are made of high-quality steel processing, the machine has a compact structure, reasonable layout, easy maintenance, and other equipment can be linked into line.
Feature
- Touch screen operation platform, PLC control, variable frequency speed control.
- Intermittent bottle moving mechanism with stable and reliable running.
- Optional function of nitrogen filling before and after filling, man-machine interface for adjustment of filling volume, ceramic pump or peristaltic pump can be adopted, driven by servo motor.
- Optional function of bottle air washing.
- No bottle no filling inner plug feeding by mechanical hand, no inner plug feeding in case of no bottle.
- No plug no cap, protection for plug shortage and cap shortage.
- Optional servo-driven cap screwing head. The cap screwing station is provided with bottle clamping device and cap ejecting device with adjustable torque.
Technical Parameters
| Applicable specification | 5-30ml |
| Productive capacity | 30-40BPM, 5ml |
| Filling head | 2 Heads |
| Press plug | 1 heads |
| Screw cap head | 1 heads |
| Filling accuracy | ≤±2% |
| Power source | 220V/50Hz |
| Cap screwing rate | ≥99% |
| Automatic plugging rate | ≥99% |
| power | 3.0 kw |
| Net machine weight | 900 kg |
| Overall dimension | 2500*1750*2450mm |
| Air Supply | 9m3/h |

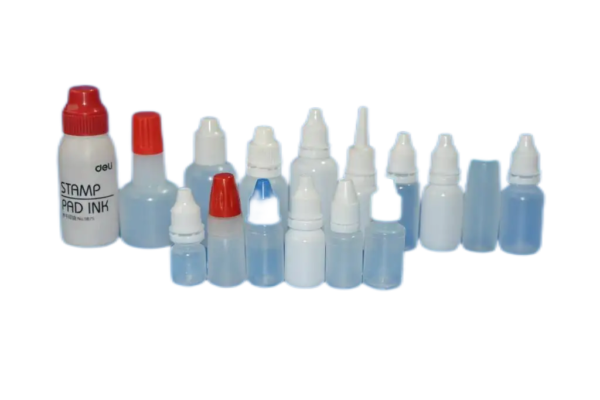

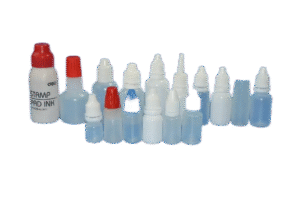

Tablet Example
