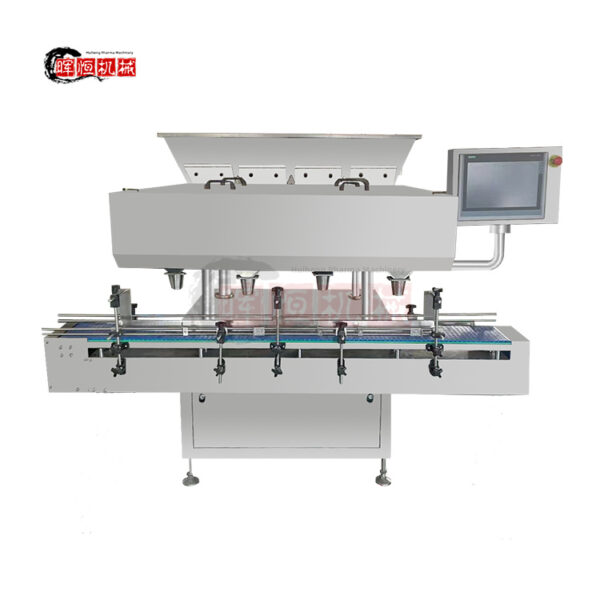

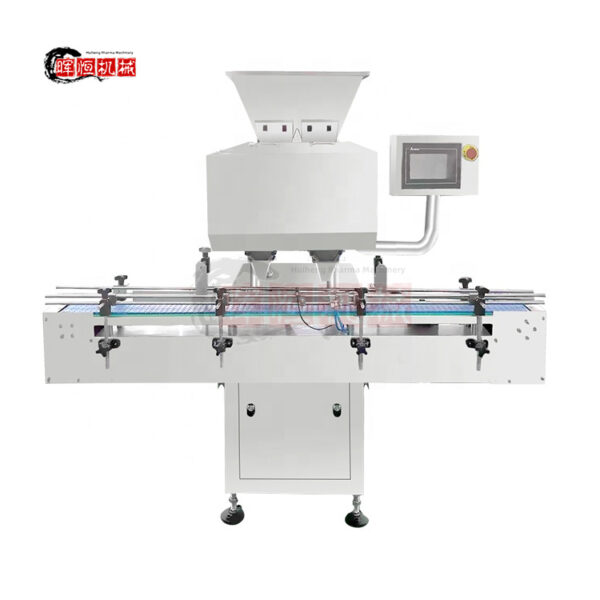

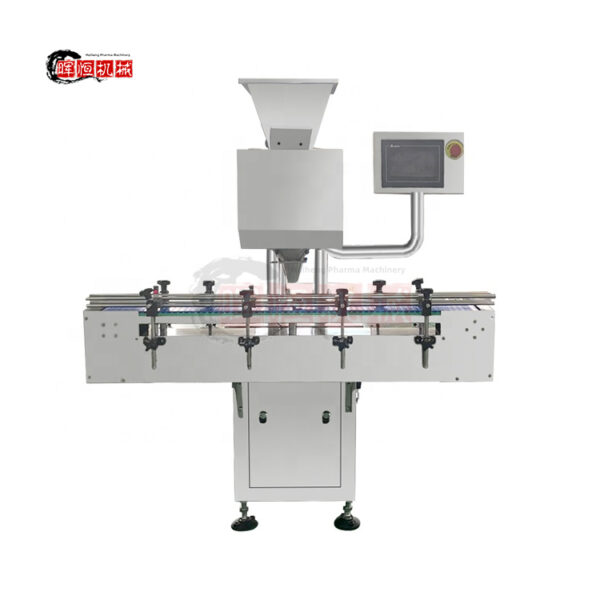

Automatic 8 Channel Capsule Pill Counting Filling Machine

Details:

  1. The whole line is fully compatible with solid preparations such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills, or solid particles (such as candy, nuts, preserves, etc.).
  2. Each machine can do its work independently, with a separate operating system. Multi-machine linkage, fast separation, fast adjustment, so that the various processes in production can ensure coordination.
  3. It features a small footprint (use area <30㎡), low energy consumption..
  4. Anti-dust technology enables the machine to operate stably in high dust environments.

Description

Application

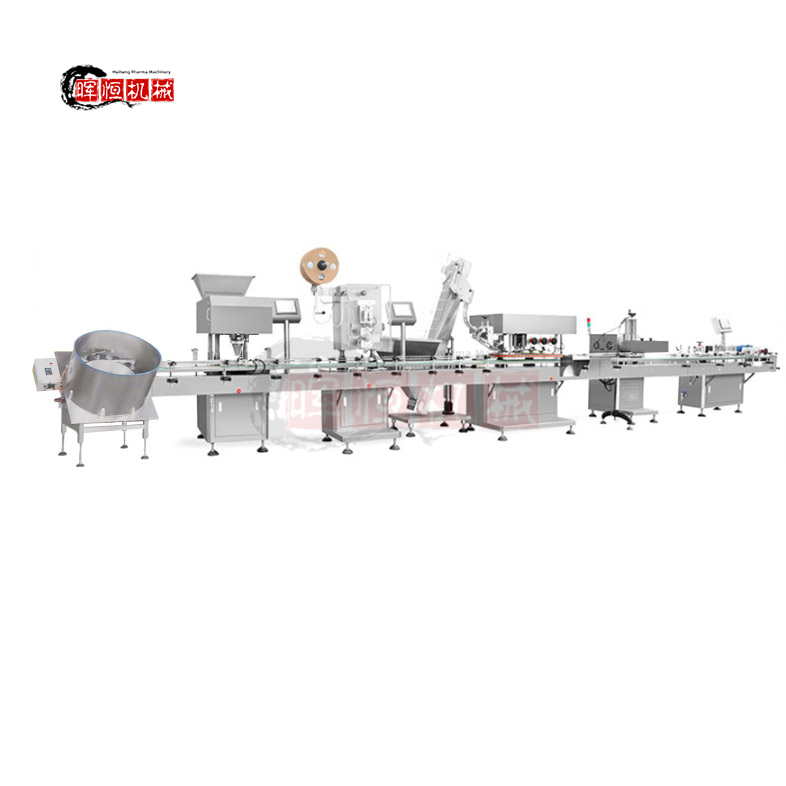

The automatic counting and bottling line is a complete solid granule product packaging line that can count hard capsules, soft capsules, tablets, augers, snack foods, hardware, etc., and has a wide range of applications. The whole line consists of a bottle unscrambler, an electronic counting machine, a desiccant insertion machine, a cotton insertion machine, an aluminum foil sealing machine, a capping machine, and a labeling machine. All machines can be operated synchronously after connection and ensure stability. Each machine of this production line can adjust quickly and use independently. And the whole production line can assemble and separate easily and quickly. The outer frame of the machine is made of 304 stainless steel, and the contact part is made of 316 stainless steel, which meets GMP requirements.

Feature

  • The whole line is fully compatible with solid preparations such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills, or solid particles (such as candy, nuts, preserves, etc.).
  • The high degree of intelligence: Every single machine adopts Chinese and English control panels and has several self-checking alarm functions. The whole line is well-connected and runs smoothly.
  • It is high efficiency, easy to operate, easy to adjust, easy to clean, easy to maintain, low operating cost, low maintenance cost. The number of operators is only about three.
  • Each machine can do its work independently, with a separate operating system. Multi-machine linkage, fast separation, fast adjustment, so that the various processes in production can ensure coordination.
  • It features a small footprint (use area <30㎡), low energy consumption.
  • It adopts the man-machine interface control panel and PLC control system, which is easy and convenient to operate.
  • Anti-dust technology enables the machine to operate stably in high dust environments.

Technical Parameters

Model SHH-SL8
Application 00~5# capsule, soft capsule, <Φ22normal tablets, special shape tablets, coating tablets, Φ3~20 pills
Output 20-75 bottles/min
Power Supply 220V 50HZ
Power 0.6Kw
Consumption Air 1.0m³/h
Overall Size 6600*1400*1900mm
Weight 1950Kg

Tablet Example
