Automatic Glass Bottle I.V Solution Normal Saline Filling Production Line
Details:
- This production line is suitable for 50ml, 100ml, 250ml, 500ml bottle infusion products
- Application of advanced technology, simple structure, reasonable, reliable, convenient maintenance and overhaul.
- Variable frequency stepless speed regulation is adopted.
Description
Application

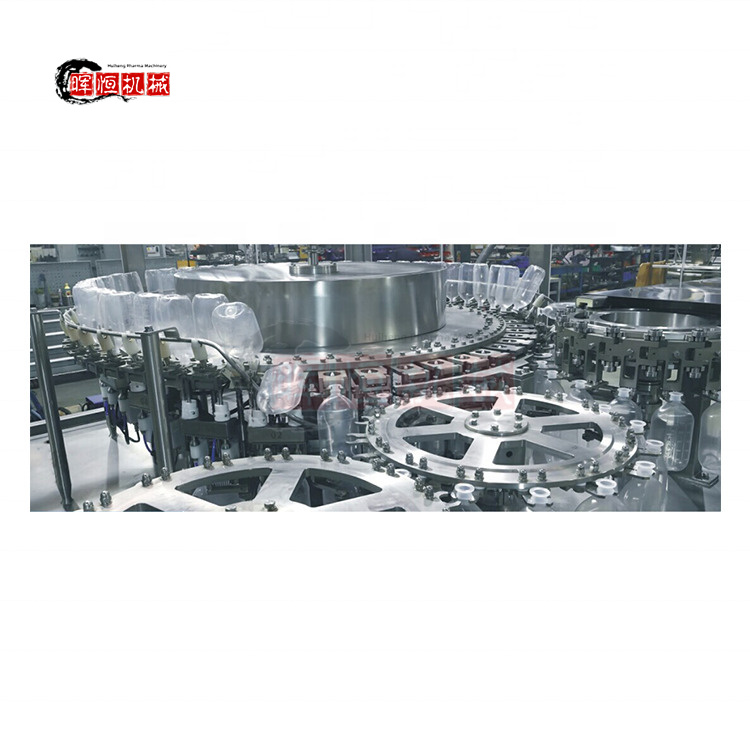

This production line is suitable for 50ml, 100ml, 250ml, 500ml bottle infusion production. The whole line is composed of bottle unpacking machine, lid lifting machine, outer washing machine, ultrasonic bottle washing machine, filling machine, stopper tipping machine and capping machine, which can automatically complete the process of bottle unpacking, bottle feeding, plastic outer cover opening, rough cleaning of bottle inner and outer surface, filling, stopper, stopper tipping, capping, capping and so on.
Feature
- Application of advanced technology, simple structure, reasonable, reliable, convenient maintenance and overhaul.
- Variable frequency stepless speed regulation is adopted.
- Adopt ultrasonic wash bottle, clean.The water seal structure will be coarse, cleaning area completely separated, and the bottle sleeve has been synchronized cleaning, in full compliance with GMP requirements.
- The crawler carrying bottle is adopted, the cleaning time is long, the pouring time after flushing bottle is long, and there is no residual water in the bottle.
- Eliminating lye and brush, conducive to environmental protection and reduce consumption; The water consumption is reduced by using differential recycled water to flush bottles.

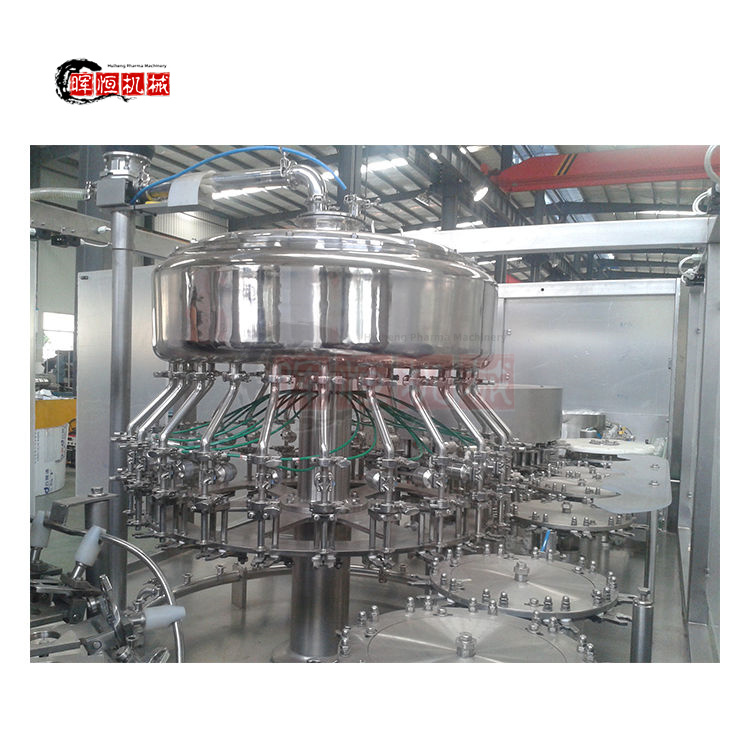

- Using the principle of self-flow isometric constant speed filling, accurate measurement, no mechanical friction, no particles.
- The front pressure plug and pressure cap mechanism are added to flatten the rubber plug and aluminum cap, so that the effect of tipping plug and capping is better.
- The main parts and casing are all made of high quality stainless steel and corrosion resistant materials, beautiful appearance.
- Strong versatility, the replacement of specifications is very convenient.
- The production line can be arranged according to the site.
Technical Parameters
| Model number | SHH-BSY50/500-120A | SHH-BSY50/500-200A | SHH-BSY50/500-300A | SHH-BSY50/500-400A |
| Maximum production capacity | 7200BPH | 12000BPH | 18000BPH | 24000BPH |
| Number of bottles per cycle for the bottle washer | 12 | 16 | 20 | 24 |
| Number of filling heads | 18 | 24 | 32 | 50 |
| Number of capping heads | 10 | 10 | 20 | 30 |
| Number of lidding heads | 6 | 10 | 15 | 20 |
| Number of label attaching heads | 1 | 1 | 2 | 2 |
| Constant water usage | 500ml | 500ml | 500ml | 500ml |
| Deionized water usage | 200ml | 200ml | 200ml | 200ml |
| Injection water usage | 250ml | 250ml | 250ml | 250ml |
| Electricity consumption | 19.7kw 380v 50Hz | 21.7kw 380v 50Hz | 26.8kw 380v 50Hz | 31.5kw 380v 50Hz |
| Steam usage | 180 kg/hour | 180 kg/hour | 200 kg/hour | 200 kg/hour |
| Dimensions (length × width × height) | 21170×3600×2000 | 28000×4200×2000 | 28500×4500×2000 | 29500×4800×2000 |
| Net machine weight | 9800 kg | 12800kg | 15000kg | 17800kg |
| Applicable specifications | 50ml、100 ml、250 ml、500 ml Type A bottles, Type B bottles and small-mouthed bottles | |||
