Product
Automatic Vial Bottle Washing Filling Capping Machine for Powder
Details:
- Automate rejecting and sampling.
- No vial no filling;
- no vial no stoppering.
Description
Application

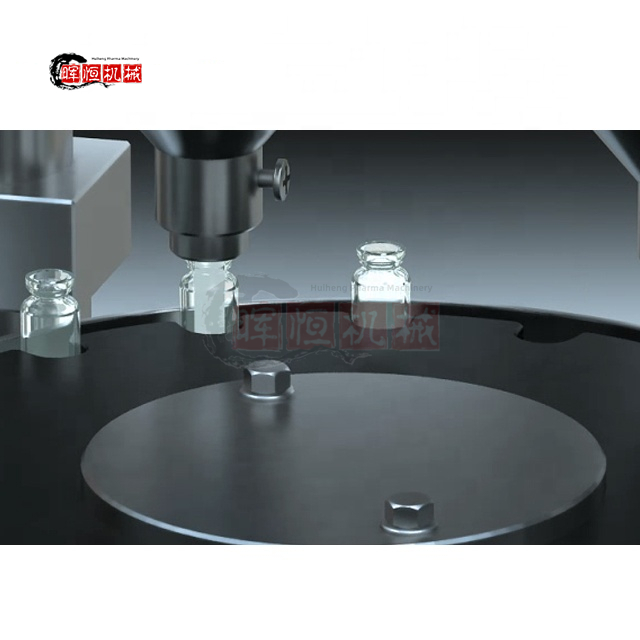

Vial powder filling and stoppering machine, the core design of the powder filling machine is to use the combination of servo motor and updated auger, which ensures the accuracy of the filling dosage. With the exact amount of powder filled in, rubber stopper will then be automatically sealed on top of each vial.
This machine is suitable for liquid/powder metering and packing. Such as penicillin powder, collagen powder, pesticide powder, injection, essence, hyaluronic acid etc.
Feature
- Low speed rotary powder filling machine SHH-FGB2-dual intermittent feeding, filling and stoppering
- High speed rotary powder filling machine SHH-FGP4 Continuous feeding, stoppering; intermittent filling. Automate rejecting and sampling. No vial no filling; no vial no stoppering.
- Linear powder filling machine SHH-FGZ2- Dual continuous feeding, stoppering; intermittent filling. Automate rejecting and sampling. No vial no filling; no vial no stoppering.
- Powder filling screw capping machine SHH-FGX2- Dual intermittent feeding, filling and screw capping
Technical Parameters
| Description | Low speed rotary powder
filling machine |
High speed rotary powder
filling machine |
Linear powder filling
machine |
Powder filling screw
capping machine |
| Model | SHH-FGB2 | SHH-FGP4 | SHH-FGZ2 | SHH-FGX2 |
| 7ML | 7200 | 22000 | 15000 | 6000 |
| 10ML | 7200 | 22000 | 15000 | 6000 |
| 15ML | 6000 | 19000 | 12000 | 5400 |
| 20ML | 5600 | 16800 | 12000 | 5400 |
| 25ML | 4900 | 15000 | 10000 | 4800 |
| 30ML | 4800 | 12000 | 10000 | 4800 |
| Power supply | 380V/50Hz/3Phases | |||
| Vacuum | -0.066MPa, 8m³/h | -0.066MPa, 14m³/h | -0.066Pa, 10m³/h |
-0.066Pa, 8m³/h |
| Power | 1KW | 6KW | 3KW | 3KW |
| Noise Level | ≤65db | ≤65db | ≤65db | ≤65db |
| Max Capacity | 7200 | 22000 | 15000 | 6000 |
| Tolerance | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
| Completion rate | 99.5% | 99.5% | 99.5% | 99.5% |
| Dimension | 1800*940*1800 | 3240*1100*1800 | 2330*1320*1800 | 1955*1188*1800 |
| Feeding height | 900±20mm | 900±20mm | 900±20mm | 900±20mm |
| Weight | 860KG | 1400KG | 1100KG | 1000KG |
Tablet Example
