Product

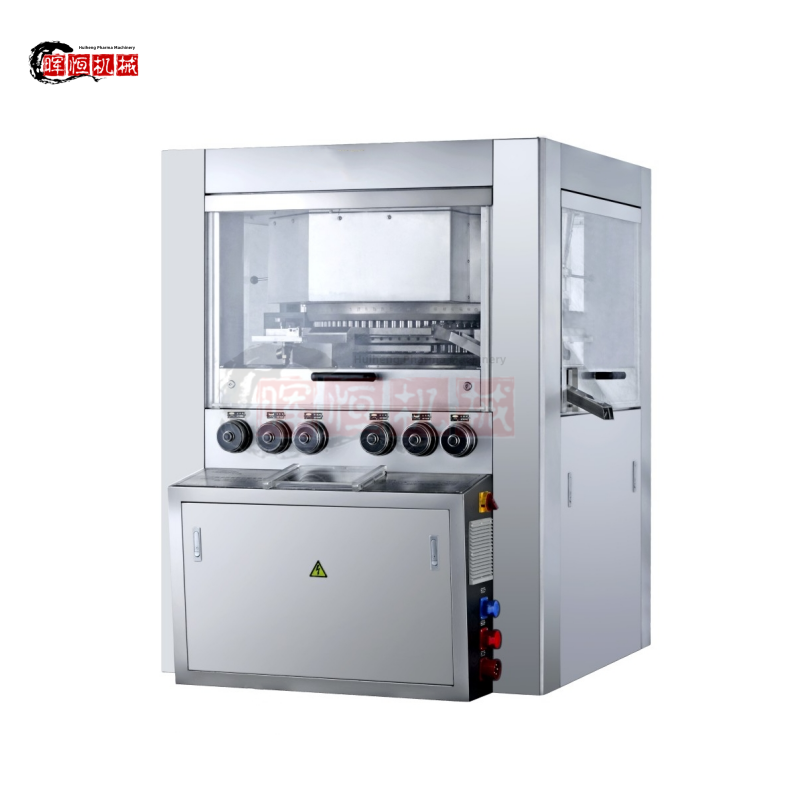

SHH-GZPB32 High Speed Automatic Tablet Press
Details:
- Adopt GMP structure
- unframed large window with 20mm thick safety glass
- single side compression
- unilateral discharge
- Fully enclosed automatic feeding
Description
Application
SHH-GZPB series automatic high-speed rotary tablet press is the second generation of the company’s latest product. It concentrates on the technical features of the domestic automatic high-speed tablet press and has made significant improvements in machine structure and operation control. The machine structure adopts a universal seat, a universal shape, and can replace the punching disc body, thereby realizing the interchange of one machine and multiple types. Industrial PLC automatic control is adopted in operation control, leaving a large development space.
Feature
- Adopt GMP structure
- unframed large window with 20mm thick safety glass
- single side compression
- unilateral discharge
- Fully enclosed automatic feeding
- forced feeding
- Main pressure 100 kn
- Pre-pressure 2 kn
- Feeding motor frequency control
- computer control tablet weight
- Overload, the punch is too tight, the lubrication is insufficient
- Suitable for round piece, shaped piece production
Technical Parameters
| Mold | GZPB-32 |
| Die type | B type |
| Dies | 32 |
| Production capacity(p/h) | 201600 |
| Max.main pressure(kn) | 100 |
| Max.pre-pressure(kn) | 20 |
| Max. tablet diameter(mm) | 16 |
| Max. irregular long axis size(mm) | 18 |
| Max.filling depth(mm) | 18 |
| Max.tablet thickness(mm) | 0.5-8 |
| Main motor power | 12Kw,3P,380V,50Hz |
| Overall dimension(mm) | Main machine:1704*1380*1926 Controller:750*550*1750 |
| Weight(kg) | Main machine:3980kg Controller:240kg |
Tablet Example
