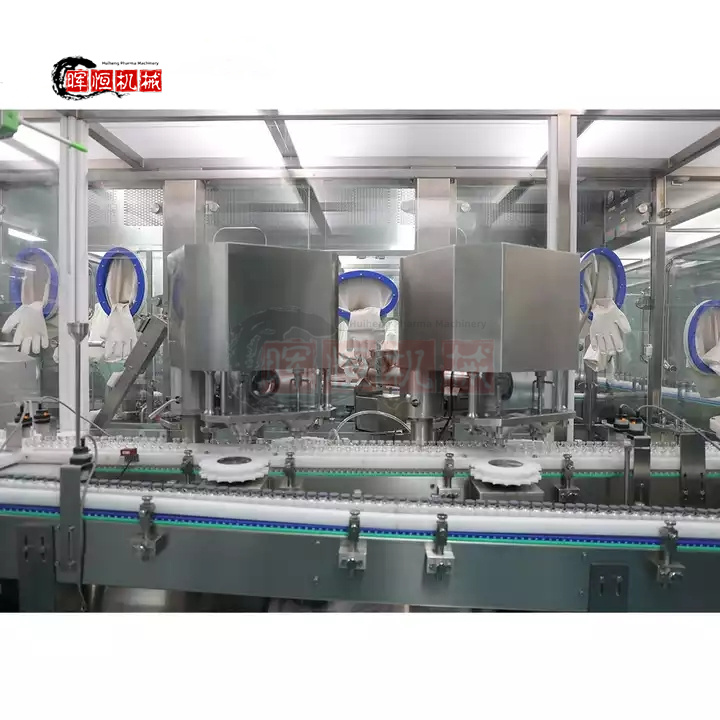

Automatic Vial Bottle Filling Stoppering Capping Production Line for Powder

Details:

  1. Applicable specification: 5ml-50ml vial (as per user’s requirement)
  2. Production Capacity: 6000-30000BPH for Machinery Vial Powder Screw Filling Capping Production Machine
  3. Number of filling head: 1-4, to be selected according to output
  4. Filling Accuracy: ≤ ±2%.
  5. Capping qualified rate: ≥99.9% for Machinery Vial Powder Screw Filling Capping Production Machine

Description

Application

Main description:

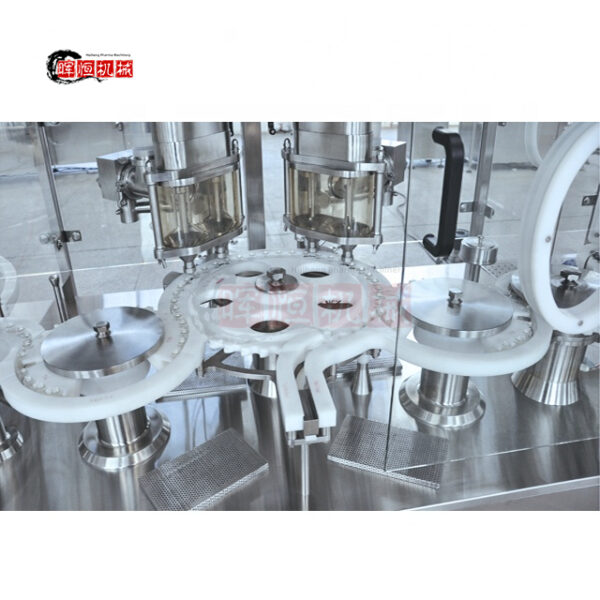

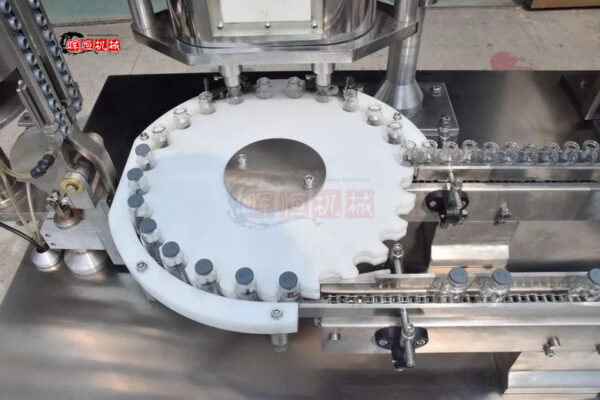

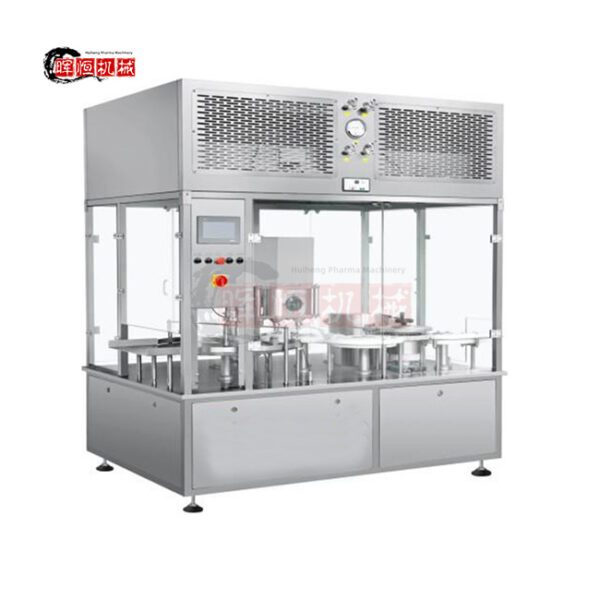

Vial powder filling and stoppering machine, the core design of the powder filling machine is to use the combination of servo motor and updated auger, which ensures the accuracy of the filling dosage. With the exact amount of powder filled in, rubber stopper will then be automatically sealed on top of each vial.

Automatic vial powder filling and capping machine is suitable for distributing powder products for medium and large factory,such as antibiotics, biochemical with automatic stoppering function. This machine is suitable for antibiotic glass bottle, rubber bottle stopper, and out cap capper, machine can be customed according to different bottle size and cap size.

Feature

Main features:

  1. Low speed rotary powder filling machine SHH-FGB2-dual intermittent feeding, filling and stoppering
  2. High speed rotary powder filling machine SHH-FGP4 Continuous feeding, stoppering; intermittent filling. Automate rejecting and sampling. No vial no filling; no vial no stoppering.
  3. Linear powder filling machine SHH-FGZ2- Dual continuous feeding, stoppering; intermittent filling. Automate rejecting and sampling. No vial no filling; no vial no stoppering.
  4. Powder filling screw capping machine SHH-FGX2- Dual intermittent feeding, filling and screw capping

Technical Parameters

Description Low speed rotary powder

filling machine

High speed rotary powder

filling machine

Linear powder filling

machine

Powder filling screw

capping machine

Model SHH-FGB2 SHH-FGP4 SHH-FGZ2 SHH-FGX2
7ML 7200 22000 15000 6000
10ML 7200 22000 15000 6000
15ML 6000 19000 12000 5400
20ML 5600 16800 12000 5400
25ML 4900 15000 10000 4800
30ML 4800 12000 10000 4800
Power supply 380V/50Hz/3Phases
Vacuum -0.066MPa, 8m³/h -0.066MPa, 14m³/h -0.066Pa, 10m³/h

-0.066Pa,

8m³/h

Power 1KW 6KW 3KW 3KW
Noise Level ≤65db ≤65db ≤65db ≤65db
Max Capacity 7200 22000 15000 6000
Tolerance ≤±2% ≤±2% ≤±2% ≤±2%
Completion rate 99.5% 99.5% 99.5% 99.5%
Dimension 1800*940*1800 3240*1100*1800 2330*1320*1800 1955*1188*1800
Feeding height 900±20mm 900±20mm 900±20mm 900±20mm
Weight 860KG 1400KG 1100KG 1000KG
