Product

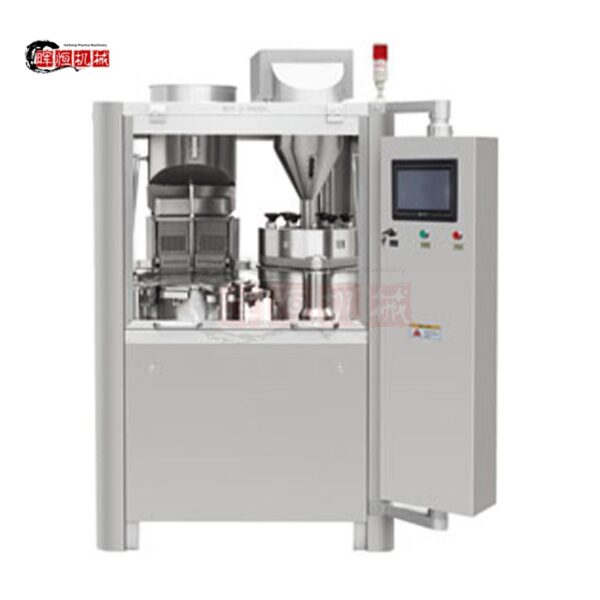

SHH-NJP1800 Full Automatic Capsule Filing Machine
Details:
- Working steady, safe and reliable enough.
- Capsule qualified rate is ≥99% with the precise dosage.
- Timing frequency-conversion, programmable controlled.
- New closed structure, accord to GMP standard.
Description
Application
Description
SHH-NJP Series Fully Automatic Capsule Filling Machine (capsule filler,capsule machine ) is filled by powder/grain/tablet, It adopts multi-bore dosing, intermittent motion and timing frequency conversion. It is suitable for automatically completing capsule feeding, separating, filling, (waste capsule rejecting), closing, finished product ejecting for powder or tiny pill medicine in capsule.
It is designed sophisticatedly by our factory according to the practice on domestic, it is fully accord with the GMP standard. It is so welcomed by the Medicine Graduate School, hospital, small-scale medicine made factories and clinics upon occupying the market.Meanwhile,this type machine replaced of the Semi automatic capsule filling machine and won a good reputation with our reliable quality and reasonable price in domestic and aboard.
Feature
- It has been improved the inner design turret,and imports beeline bearings for each machine from Japan directly,so that it can be sure a longer usage-life and precision of machine.
- The working station cam runs under the good lubricating condition,and maintains the inner lubrication of cam slot to a full extent,increasing the pressure pulverization oil pump,thus extends the operation life of the spare parts.
- It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
- The multi-bore dosing brings a precision dosage (it is controlled around 3.5%); the good capsule applicability makes a higher capsule qualified rate (99%).It can be filled with the Chinese traditional medicine and the Western medicine.
- It has a protector equipment for the operator and the machine.It has a automatic pause equipment when it is lack for the material.It has a steady and safe working, it is the best choice for the hard capsule made factories.
Technical Parameters
| Model | SHH-NJP200 | SHH-NJP400 | SHH-NJP600 | SHH-NJP800 | SHH-NJP1200 | SHH-NJP2000 | SHH-NJP3500 |
| Filling dosage form | Powder&granule, pellet or tablet | ||||||
| Output(pcs/min) | 200 | 400 | 600 | 800 | 1200 | 2000 | 3500 |
| Capsule size | No.00-No.5 | ||||||
| Capsule qualified rate | ﹥99% | ||||||
| Dosing precision | ﹤±4% | ||||||
| Power supply | 380V 50HZ | ||||||
| Power(kw) | 3 | 3 | 3 | 4 | 5 | 8 | 10.5 |
| Noise | ﹤80dBA | ||||||
| Overall size(mm) | 610×670×1700 | 730×950×1700 | 840×960×1800 | 840×960×1800 | 910×980×1800 | 1160×1250×1900 | 1170×1560×2000 |
| Net weight(kg) | 700 | 800 | 900 | 900 | 1100 | 1500 | 2200 |
Tablet Example
