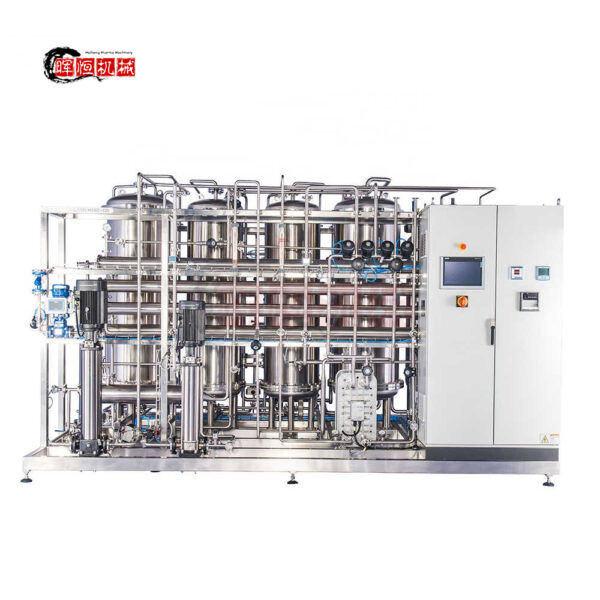

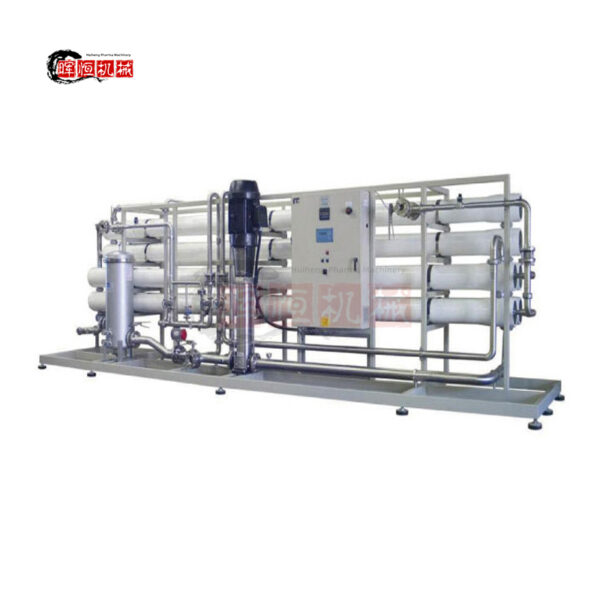

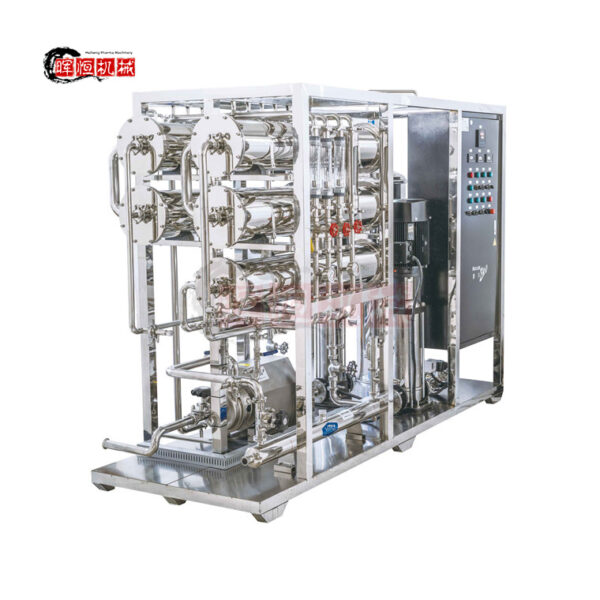

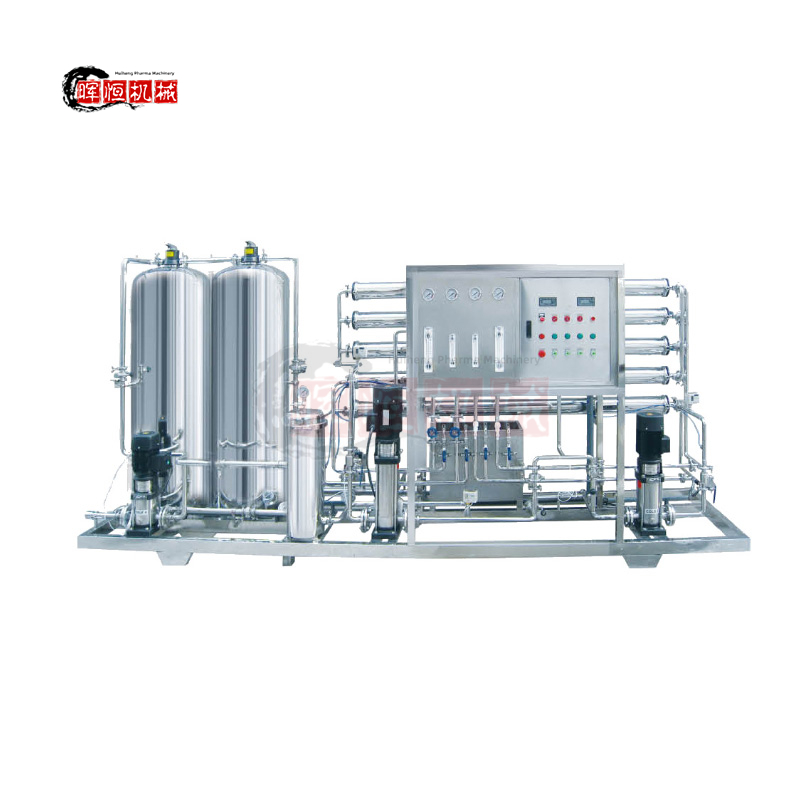

RO Reverse Osmosis Water Treatment System
Details:
- Modularity design, compact structure.
- System can choose thermal disinfection RO membrane and thermal disinfection EDI;
- the whole system can realize on-line hot water disinfection.
- Double softener can achieve series connections by using the valve group and generation alternatively.
Description
Application
Introduction:
1.Reverse osmosis is a kind of membrane separation technology developed since the 1980s.
2.It mainly uses the osmosis principle if semi-transparent membrane. A pressure that is called reverse osmosis.
3.The device that is composed of reverse osmosis components is called reverse osmosis device.
Primary and secondary reverse osmosis+EDI
1.Applied in areas where the salinity of raw water is high;
2.Good electric conductivity of water produced;
3.Low investment;
4.Low operating cose;
5.Good stability.
Feature
Technical characteristics
- Modularity design, compact structure.
- System can choose thermal disinfection RO membrane and thermal disinfection EDI;the whole system can realize on-line hot water disinfection.
- Double softener can achieve series connections by using the valve group and generation alternatively.
- Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.
- System terminal water production uses a dual supply mode
- Using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.
- Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.
- For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality
- Control system: PLC automatic control technology
- Recording mode:You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time
Technical Parameters
| Item | Water Yield (m3 /h ) | Minimum Water Inflow (m3 /h ) | Desalted Water
(%) |
Working Water Temperature (°C) |
| SHH-RO0.5-A | 0.5 | 2.0 | 98 | 5-35 |
| SHH-RO1-A | 1.0 | 2.5 | 98 | 5-35 |
| SHH-RO2-A | 2.0 | 3.6 | 98 | 5-35 |
| SHH-RO3-A | 3.0 | 5.0 | 98 | 5-35 |
| SHH-RO4-A | 4.0 | 6.5 | 98 | 5-35 |
| SHH-RO6-A | 6.0 | 8.5 | 98 | 5-35 |
| SHH-RO8-A | 8.0 | 11.0 | 98 | 5-35 |
| SHH-RO10-A | 10.0 | 13.5 | 98 | 5-35 |
| SHH-RO15-A | 15.0 | 20.0 | 98 | 5-35 |
| SHH-RO20-A | 20.0 | 26.0 | 98 | 5-35 |
| SHH-RO25-A | 25.0 | 35.0 | 98 | 5-35 |
| SHH-RO30-A | 30.0 | 40 | 98 | 5-35 |
