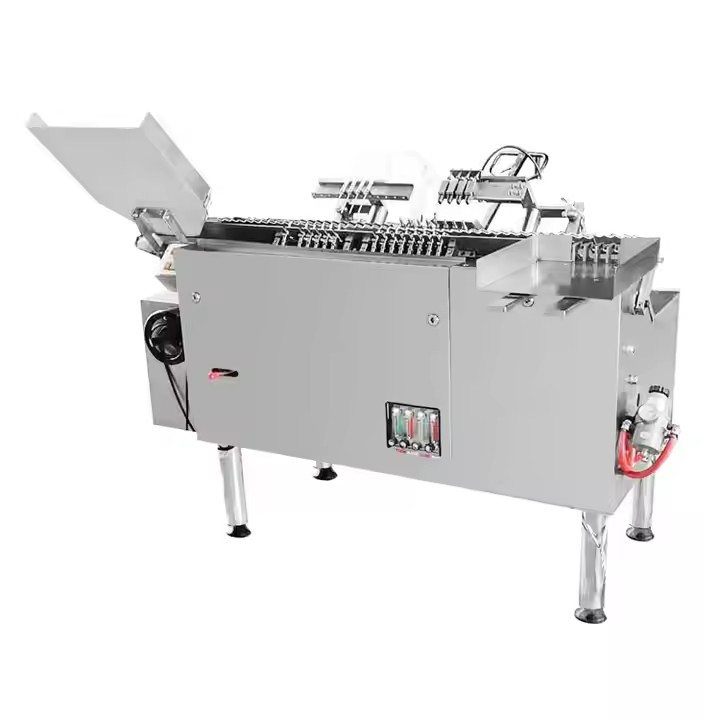

SHH-AGL8 Series Glass Ampoule Filling Sealing Machine

Details:

Every 2, 4 or 6 ampoule bottles as a group,
Move together to each working process position for the bottle feeding, prior nitrogen filling, liquid filling, later nitrogen filling, bottle warming up and bottle sealing.
It is welcome for the simple structure, easy operation and steady quality.

Description

Application

Introduction

This machine is mainly used for filling and sealing ampoule bottles under aseptic conditions. It adopts step-by-step transmission system to automatically complete the separation and feeding of bottles, forward nitrogen charge, filling of medicine, post nitrogen charge, preheating, wire drawing and sealing and other processes. With PLC program control, advanced intelligent electronic control technology, concise and intuitive HMI, the perfect Mechatronics design is realized, and no filling without bottles is achieved. The appearance is made of 304 stainless steel, which meets the requirements of GMP.

This machine is suitable for automatic and precise filling and wire drawing sealing of ampoule bottles in pharmaceutical industry.

This series of ampoule machine, newly developed by our factory, is a new generation of the ampoule drawing, filling and sealing combined equipment.

It adopts the rectangular feeding instead of the traditional ampoule feeding methods to make the feeding more steady with less broken rate. A new clutch device is installed under the ampoule feeding hopper. In this way, the ampoule feeding can be stopped at any time while the machine is still running. And the ampoule loss can be reduced efficiently.

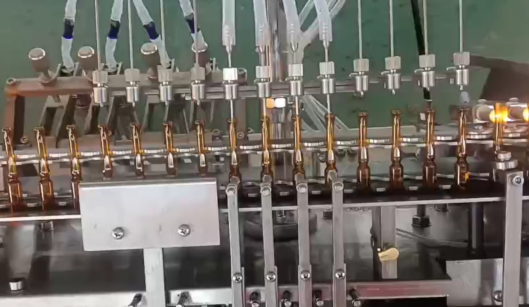

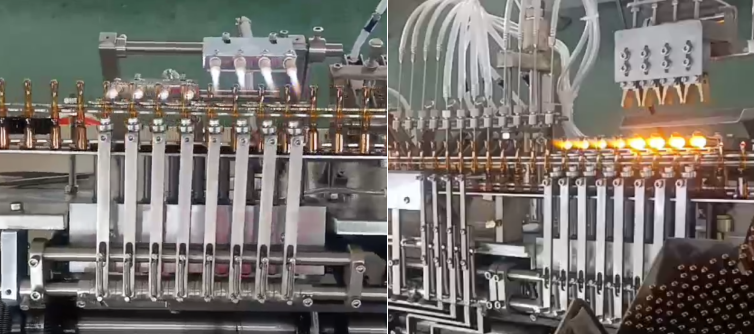

Every 2, 4 or 6 ampoule bottles as a group, move together to each working process position for the bottle feeding, prior nitrogen filling, liquid filling, later nitrogen filling, bottle warming up and bottle sealing. It is welcome for the simple structure, easy operation and steady quality.

Feature

Every 2, 4 or 6 ampoule bottles as a group,
Move together to each working process position for the bottle feeding, prior nitrogen filling, liquid filling, later nitrogen filling, bottle warming up and bottle sealing.
It is welcome for the simple structure, easy operation and steady quality.

Technical Parameters

No.	Items Specifications	Parameter	Parameter
1	Ampoule Size	1-2ml/2-5ml/5-10ml/10ml/20ml	1-2ml/2-5ml/5-10ml/10ml/20ml
2	Filling Nozzles	6	8
3	Ampoule Model	B&C&D	B&C&D
4	Capacity	5500-8000 bph	7500-11000 bph
5	Sealed Gas	A、Coal Gas + oxygen B、LPG + oxygen	A、Coal Gas + oxygen B、LPG + oxygen
6	Gas pressure	P Coal Gas 0.9~1Kpa Pr Oxygen Gas0.08~0.1Mpa	P Coal Gas 0.9~1Kpa Pr Oxygen Gas0.08~0.1Mpa
7	Motor	Model：JW7134 Power：0.50KW	Model：JW7134 Power：0.55KW
8	Overall Dimensions （L×W×H）	2200×980×1450mm	2500×980×1450mm
9	Weight	500Kg	600Kg
10	Feeding ampoule bottle and moving ampoule method	Horizontal	Horizontal
11	Filling Pump	Ceramic Pump	Ceramic Pump
