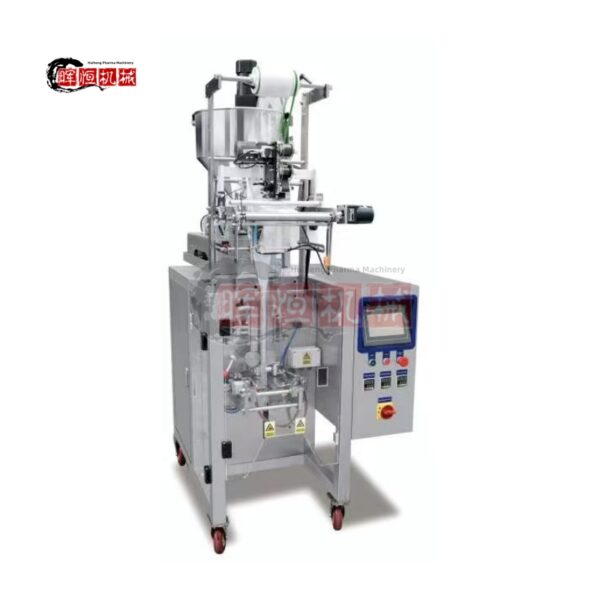

SHH-L60FZ Liquid Automatic Small Bag Packing Machine
Details:
1.Three-side seaing.
2.Three feeding trays and a feeding bucket are adopted to make the laver, carrotdried shrimps and oil bag be filled at the same time.
3.It is able to automatically finish the process of bag making, measuring, filling, cuttng, sealing, counting and printing series number.
Description
Application
Application area: dehydrated vegetables, seaweed, carrots,oil, Cereals, nuts and other materials at the same time packaging.
Packing material: Polypropylene/PE, aluminium foil/polyethylene, polyester/aluminium/polyethylene, nylon/reinforced polyethylene, paper/polyethylene,etc..
Feature
Main performance and structure features:
1.Three-side seaing.
2.Three feeding trays and a feeding bucket are adopted to make the laver, carrotdried shrimps and oil bag be filled at the same time.
3.It is able to automatically finish the process of bag making, measuring, filling, cuttng, sealing, counting and printing series number.
4.Adopt advanced microcomputer controller to drive and control the length of bag with stable performance and accurate testing.
5.Intelligent temperature controller and PID adjustment make sure the error rage of temperature within 1℃ .
Technical Parameters
| Model | SHH-L60 |
| Bag Size | W:30-140mm; L:30-150mm |
| Packing Speed | 30-60bags/min |
| Measuring Range | 3-150ml |
| TotalPower | 220V/50HZ/1.5KW |
| Total Weight | 400KG |
| Dimension(L’WH) | 900×700×1700mm |
