Product

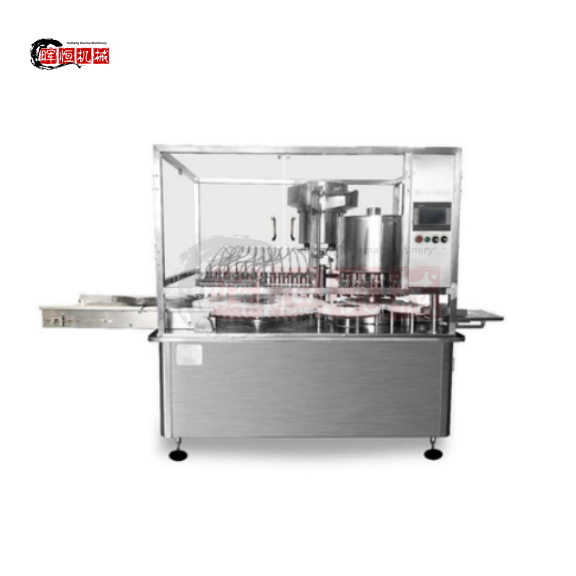

SHH-YT Series Oral Liquid Filling Capping Machine
Details:
1. Adopts plunger type metering pump filling, high precision;
2. The structure of pump adopts fast disassembly institutions, easy to clean and disinfect.
3. PLC control system, color touch screen display, machine has function of counting automatically.
4. The filling nozzle was equipped with drip-proof device.
Description
Application
Brief Introduction：
It’s just for 10-20ML oral filling&sealing, a major machine in production line for oral liquid, it main used in filling, capping placing and sealing of straight tube bottle. Tracking filling, cap automatically conveying by electromagnetic oscillator, three knifes centrifugal sealing (or screwing), no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP.this kind of machine .
Feature
- All elements is well know brand.
- Direct viewing operation, no bottle no filling, measuring accurate.
- Three knifes centrifugal sealing, ensure firm and beauty.
- The whole machine is designed according to the requirements of GMP.
Technical Parameters
| Model | SHH-YT4 |
| Filling volume | 10-20ml |
| Capacity | 60-90 bpm |
| Filling accuracy | ≥99% |
| Power Supply | 380V 50Hz |
| Damaged Rate | ≥99% |
| Power | 1.5KW |
| Weight | 450KG |
| Overall dimension | 1400 *1200*1600 |
